112975
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BNC PLG B1506A
PDF
/
Buying Options
Total Price: USD $5.68
Unit Price: USD $5.6848
≥1 USD $5.6848
≥10 USD $5.14184
≥100 USD $4.857248
≥500 USD $4.738624
≥1000 USD $4.501728
≥3000 USD $4.027822
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 10.420009g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Resistance 75Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

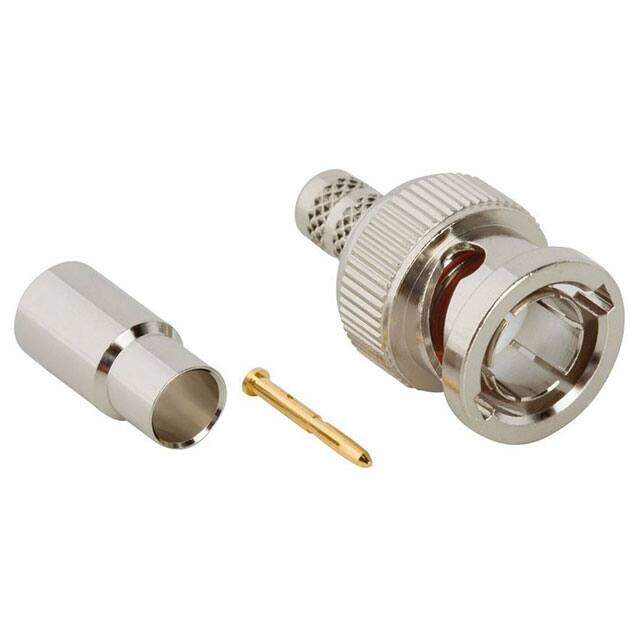

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group RG-59 Plenum, Belden 1506, 82108, 9104
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
