112956
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

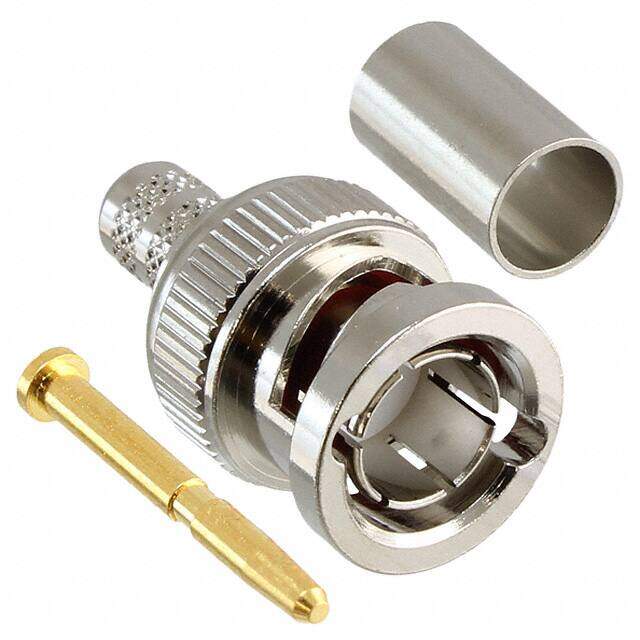

RF Connectors / Coaxial Connectors BNC CRIMP PLUG VPM2000 75 OHM
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.268
≥1 USD $4.268
≥10 USD $3.87376
≥100 USD $3.668544
≥500 USD $3.583184
≥1000 USD $3.41264
≥3000 USD $2.986042
Inventory: 769
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 25mm
Technical
Shield Termination Crimp
Cable Group RG-59, Belden 1426A, 1505A, 8281, 9100, 9278
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp or Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 75Ohm
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 9.150007g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
