112955
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

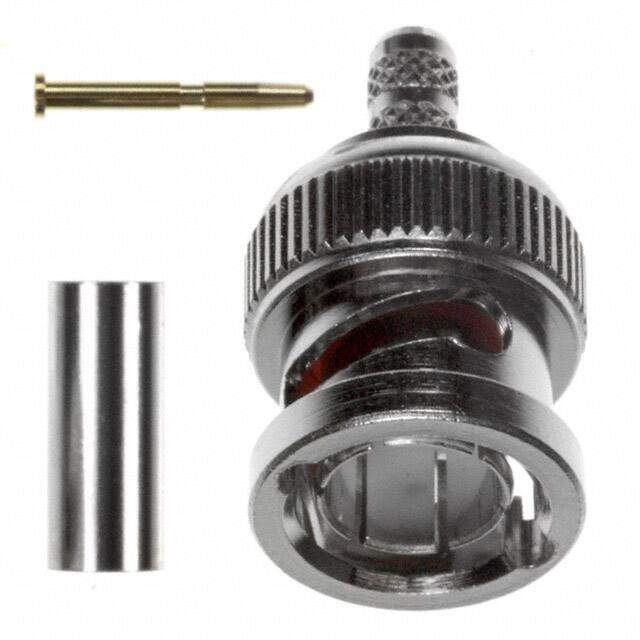

BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $4.69
Unit Price: USD $4.6904
≥1 USD $4.6904
≥10 USD $4.25568
≥100 USD $4.031104
≥500 USD $3.937296
≥1000 USD $3.749856
≥3000 USD $3.281133
Inventory: 212
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 8.760003g
Body Material Brass
Center Contact Plating Gold
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Dimensions
Length 25mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
