112951
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

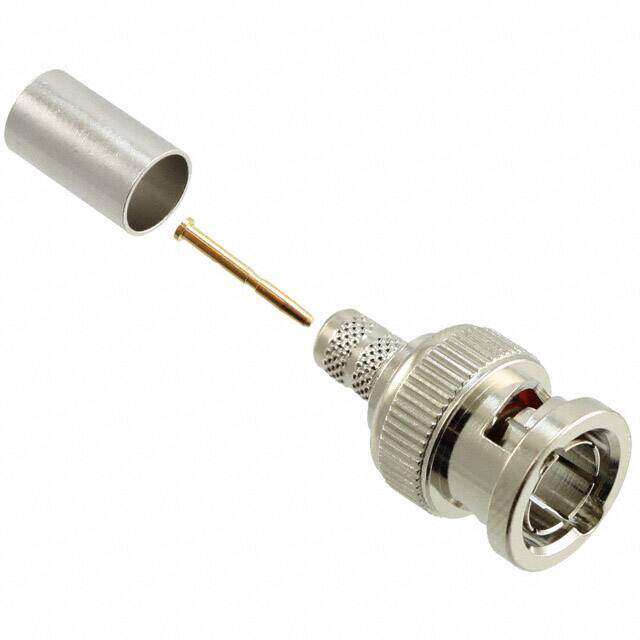

CONN BNC PLUG STR 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $4.22
Unit Price: USD $4.224
≥1 USD $4.224
≥10 USD $3.8324
≥100 USD $3.629472
≥500 USD $3.545168
≥1000 USD $3.376384
≥3000 USD $2.954336
Inventory: 151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 8.760003g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group AT&T 734, 734A, Belden 1505A
Shield Termination Crimp
Dimensions
Length 25mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
