112806-75
RoHS
RoHS compliant
RoHS compliantPackage 062
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
BNC Connector Receptacle, Female Socket 75 Ohm Board Edge, End Launch; Panel Mount, Bulkhead Solder
PDF
/
Buying Options
Total Price: USD $10.23
Unit Price: USD $10.2256
≥1 USD $10.2256
≥10 USD $9.064
≥100 USD $8.715872
≥500 USD $8.367216
≥1000 USD $7.902312
≥3000 USD $7.205062
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.2dB

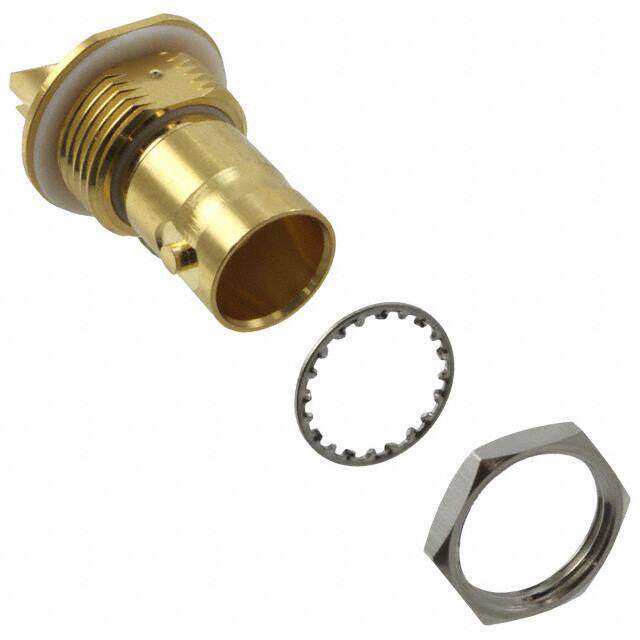

Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Gold
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Isolated
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 8.479994g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Package / Case 062
Mounting Type Board Edge, End Launch; Panel Mount
Mount Bulkhead, Edge, Panel
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
