112775-75
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

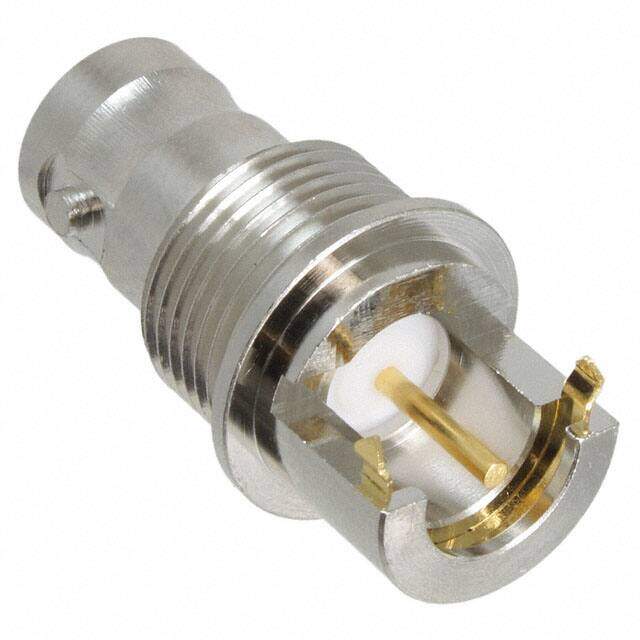

RF Connectors / Coaxial Connectors BNC PCB Mount Jack 75 ohm
PDF
/
Buying Options
Total Price: USD $8.56
Unit Price: USD $8.5624
≥1 USD $8.5624
≥10 USD $7.70264
≥100 USD $7.256128
≥500 USD $7.070272
≥1000 USD $6.884152
≥3000 USD $6.139936
Inventory: 67
Minimum: 1
-
+
Technical Details
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Board Edge, End Launch; Panel Mount
Mount Bulkhead, Edge, Panel, Surface Mount
Contact Plating Gold
Contact Material Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2010
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 3GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 3GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 28.1mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Supply Chain
Factory Lead Time 8 Weeks
