112757
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

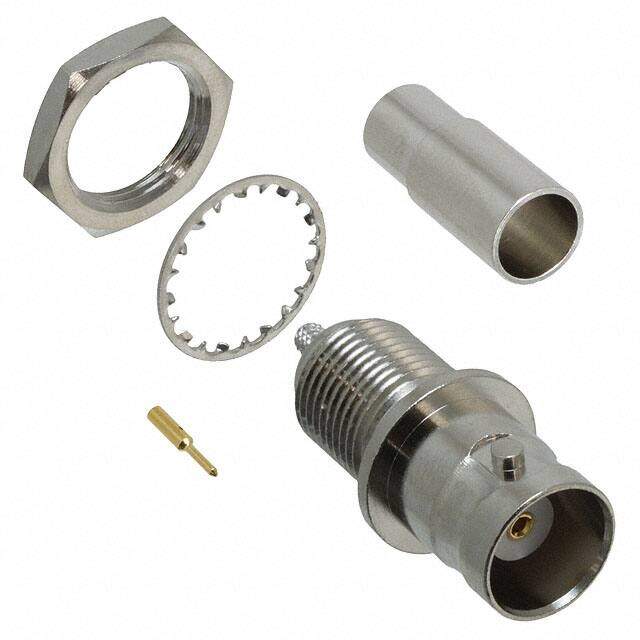

BNC Connector Jack, Female SocketPanel Mount, Bulkhead - Rear Side Nut Crimp
PDF
/
Inventory: 9877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Voltage - Rated 500V
Fastening Type Bayonet Lock
Housing Color Silver
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Body Finish Nickel
Cable Group RG-196A
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
