112722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

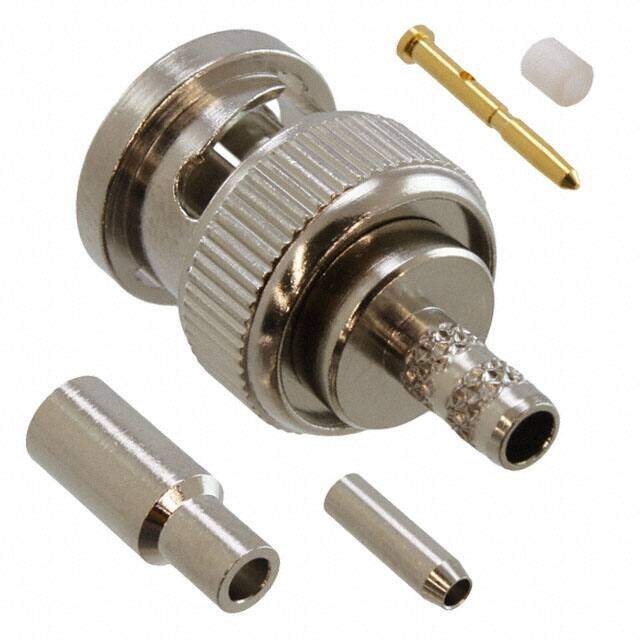

BNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $5.1
Unit Price: USD $5.104
≥1 USD $5.104
≥10 USD $4.6376
≥100 USD $4.392256
≥500 USD $4.29
≥1000 USD $4.085664
≥3000 USD $3.574974
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Voltage - Rated 500V
Fastening Type Bayonet Lock
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Sleeve
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Crimp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
