112653
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

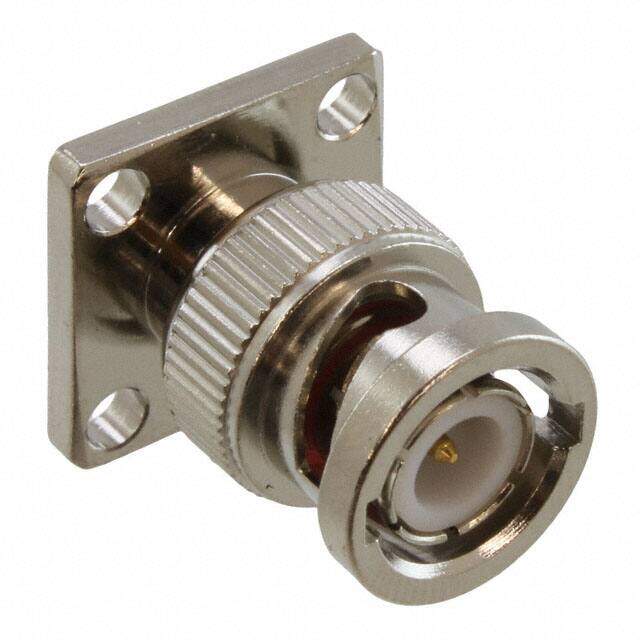

BNC Connector Receptacle, Male Pin 50 Ohm Panel Mount, Square Flange Solder Cup
PDF
/
Buying Options
Total Price: USD $10.34
Unit Price: USD $10.34
≥1 USD $10.34
≥10 USD $9.16696
≥100 USD $8.81408
≥500 USD $8.461376
≥1000 USD $7.991368
≥3000 USD $7.28625
Inventory: 245
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 17.5mm
Frequency 4Hz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder Cup
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 25.4mm
Compliance
RoHS Status RoHS Compliant
