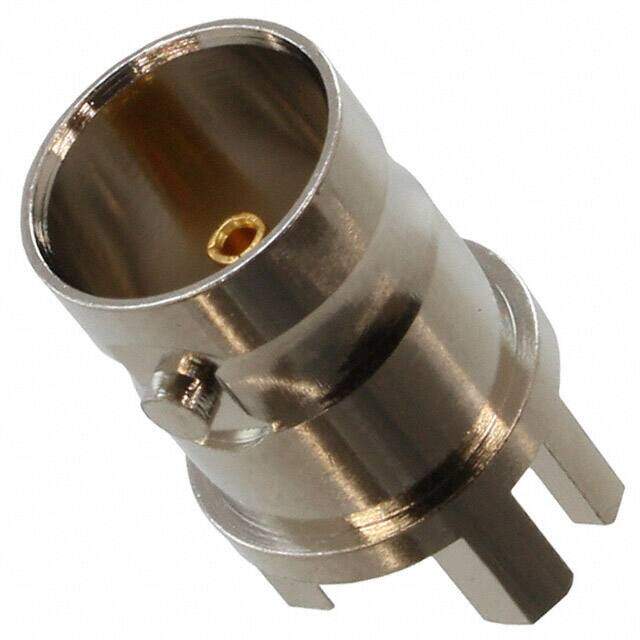

112641
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 75OHM EDGE MNT
PDF
/
Buying Options
Total Price: USD $5.68
Unit Price: USD $5.6848
≥1 USD $5.6848
≥10 USD $5.13744
≥100 USD $4.853376
≥500 USD $4.734928
≥1000 USD $4.498208
≥3000 USD $4.024706
Inventory: 860
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Nickel
Contact Termination Solder
Mating Cycles 500
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1Hz
Depth 16.97mm
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 50Ohm
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Board Edge, End Launch
Mount Edge
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
