112638
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
BNC Connector Jack, Female Socket 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $5.95
Unit Price: USD $5.94875
≥1 USD $5.94875
≥200 USD $2.373723
≥500 USD $2.294949
≥1000 USD $2.255562
Inventory: 3190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 9.099998g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Resistance 75Ohm
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

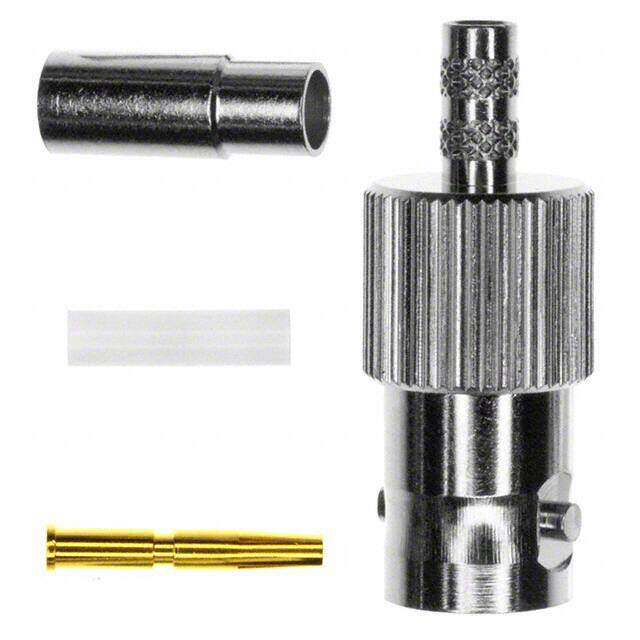

Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Body Finish Nickel
Cable Group Belden 573945, Mini Max
Shield Termination Crimp
Dimensions
Length 28.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
