112635
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

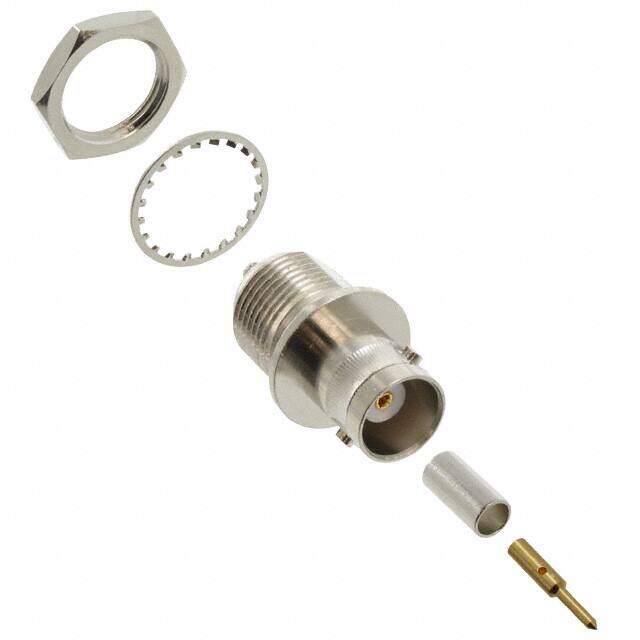

BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Rear Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $9.47
Unit Price: USD $9.4688
≥1 USD $9.4688
≥10 USD $8.51928
≥100 USD $8.024896
≥500 USD $7.819328
≥1000 USD $7.613496
≥3000 USD $6.790432
Inventory: 202
Minimum: 1
-
+
Technical Details
Technical
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Shield Termination Crimp
Body Finish Nickel
Insertion Loss 0.2dB
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 16.99999g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Rear Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Front, Panel, Rear Side Nut
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
