112631
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

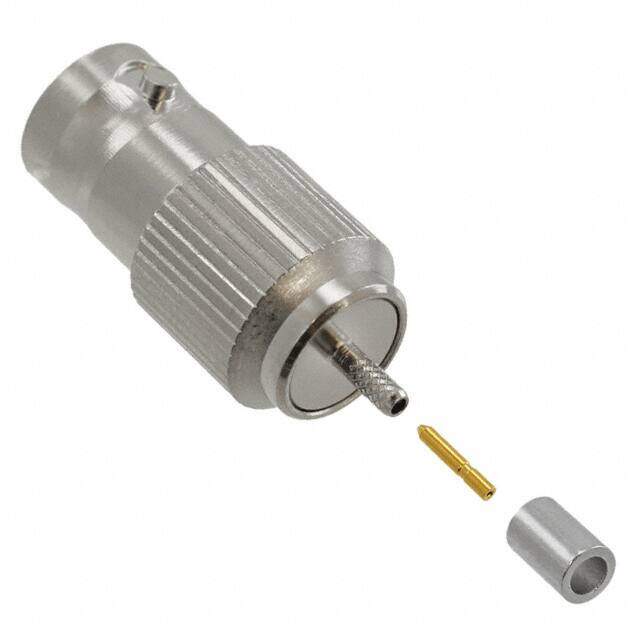

connector, rf coaxial, bnc straight crimp jack, for rg178, 196 cable, 50 ohm
PDF
/
Buying Options
Total Price: USD $3.53
Unit Price: USD $3.531206
≥1 USD $3.531206
≥10 USD $3.331317
≥100 USD $3.142752
≥500 USD $2.964871
≥1000 USD $2.797036
Inventory: 1377
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 10.300005g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Resistance 50Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Shield Termination Crimp
Dimensions
Length 27.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
