112605

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

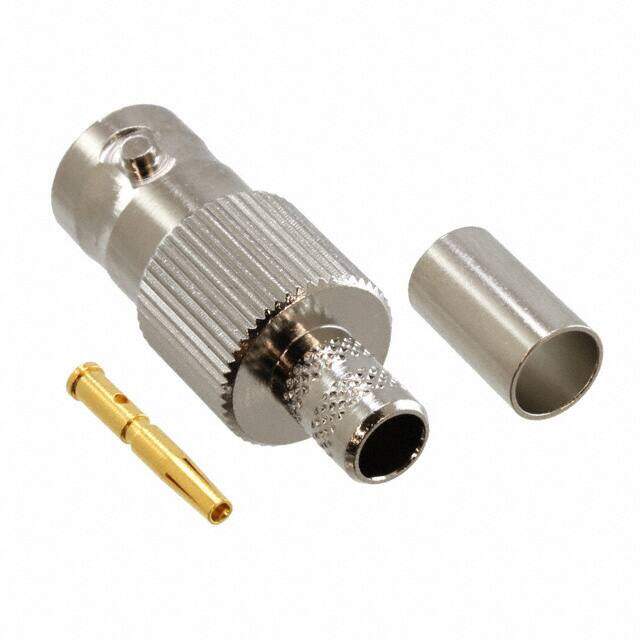

Description RF Connectors / Coaxial Connectors BNC STRAIGHT CRIMP JACK LMR 240/8X
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.7048
≥1 USD $3.7048
≥10 USD $3.36688
≥100 USD $3.188768
≥500 USD $3.114672
≥1000 USD $2.966304
≥3000 USD $2.595534
Inventory: 203
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Shield Termination Crimp
Cable Group RG-8X, Belden 9258, LMR-240
Body Finish Nickel
Insertion Loss 0.2dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 10.180002g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
