112603
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BNC STRAIGHT CRIMP JACK LMR 400/B9913
PDF
/
Buying Options
Total Price: USD $8.15
Unit Price: USD $8.1488
≥1 USD $8.1488
≥10 USD $7.3304
≥100 USD $6.905184
≥500 USD $6.728128
≥1000 USD $6.551072
≥3000 USD $5.842848
Inventory: 288
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 18.461011g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

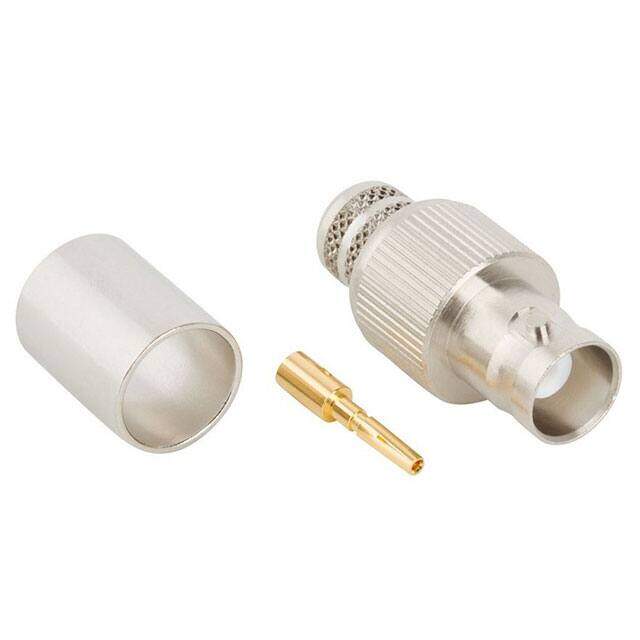

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group Belden 8214, 9913, 9914, LMR-400
Shield Termination Crimp
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
