112602
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BNC BLHD JACK 8X/ LMR240
PDF
/
Buying Options
Total Price: USD $8.76
Unit Price: USD $8.756
≥1 USD $8.756
≥10 USD $7.87776
≥100 USD $7.421216
≥500 USD $7.231136
≥1000 USD $7.040792
≥3000 USD $6.279618
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 16.560005g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 17.5mm
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

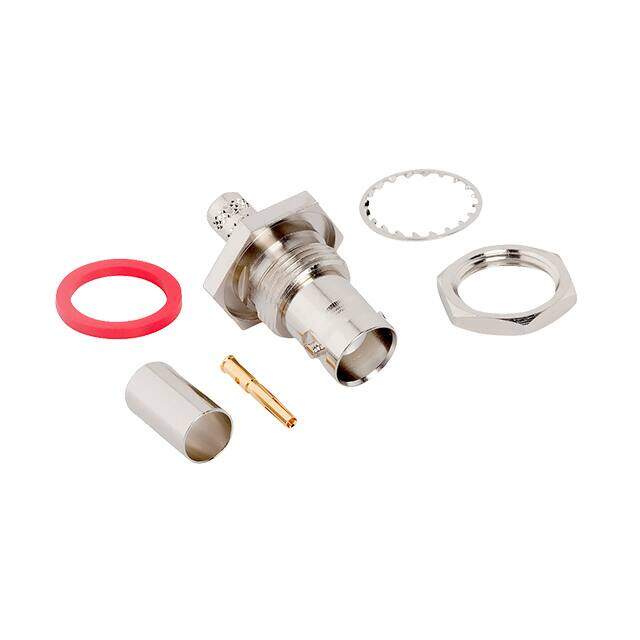

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-8X, Belden 9258, LMR-240
Shield Termination Crimp
Dimensions
Length 30.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
