112595
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
BNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $11.57
Unit Price: USD $11.572
≥1 USD $11.572
≥10 USD $10.25904
≥100 USD $9.864448
≥500 USD $9.469856
≥1000 USD $8.943704
≥3000 USD $8.154546
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 24.166012g
Body Material Brass
Center Contact Plating Gold
Technical
Packaging Bulk
Published 2006
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Male Pin
Resistance 50Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Total Number of Contacts 1
Orientation Right Angle
Frequency 4GHz
Reliability COMMERCIAL
Housing Color Silver
Polarity Standard
Contact Style COAX
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Insulator Color NATURAL

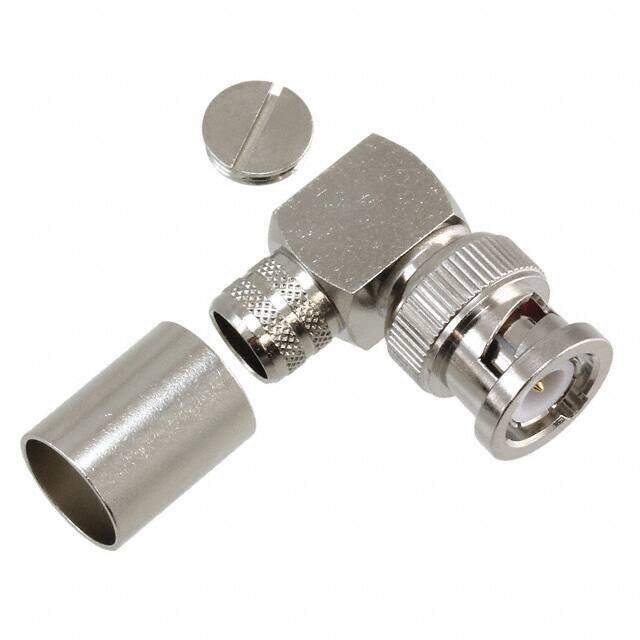

Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Shield Termination Crimp
Dimensions
Length 27.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
