112586
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

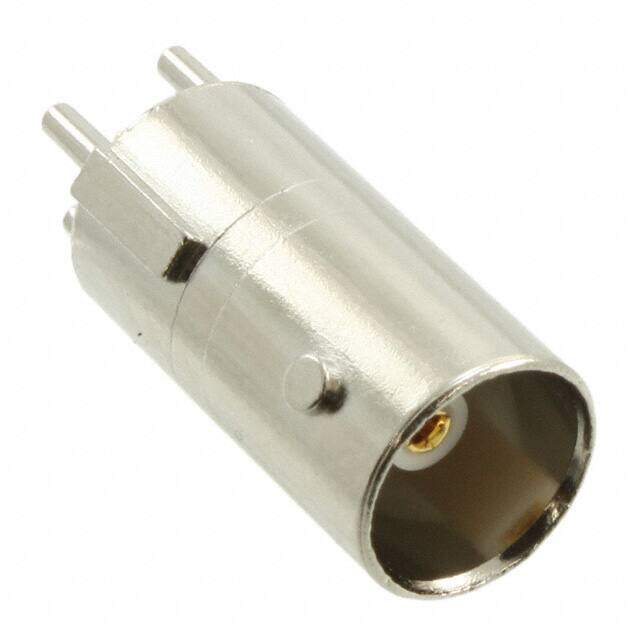

BNC Connector Jack, Female Socket 75 Ohm Through Hole Solder
PDF
/
Buying Options
Total Price: USD $3.18
Unit Price: USD $3.1768
≥1 USD $3.1768
≥10 USD $2.88552
≥100 USD $2.732576
≥500 USD $2.66904
≥1000 USD $2.541968
≥3000 USD $2.224226
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Body Finish Nickel
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Polarity Standard
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
HTS Code 8536.69.40.40
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 1997
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Zinc Die Cast
Weight 4.525009g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Material Bronze, Copper
Supply Chain
Factory Lead Time 9 Weeks
