112580
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

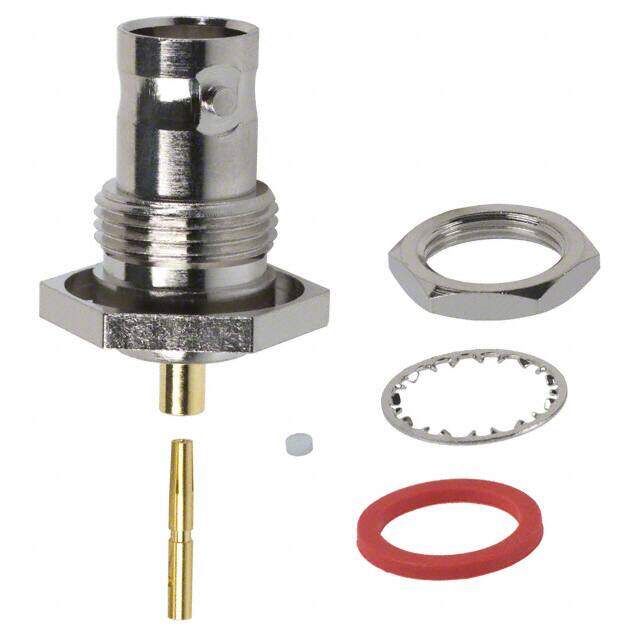

BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $6.9
Unit Price: USD $6.8992
≥1 USD $6.8992
≥10 USD $6.2348
≥100 USD $5.889664
≥500 USD $5.746048
≥1000 USD $5.458728
≥3000 USD $4.88415
Inventory: 137
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 15.419986g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 17.5mm
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Includes 6 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-405 (.085, .086 Semi Rigid)
Shield Termination Solder
Dimensions
Length 26.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
