112576

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

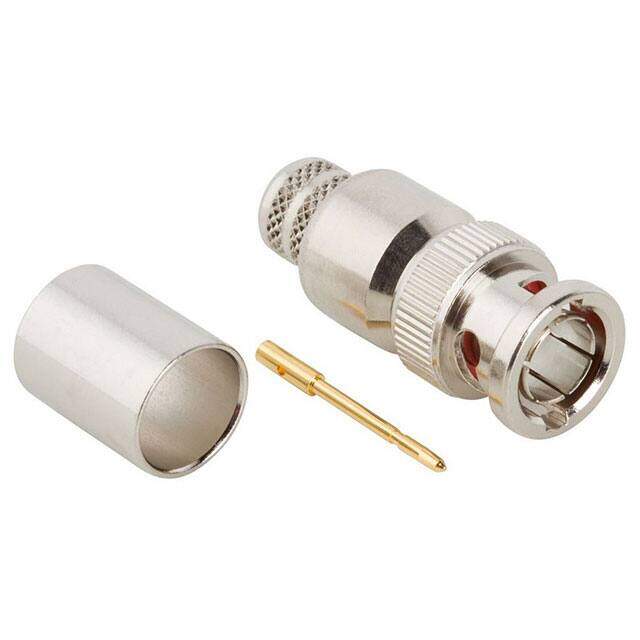

Description RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG 11 75 OHM
PDF
/
Buying Options
Total Price: USD $11.18
Unit Price: USD $11.1848
≥1 USD $11.1848
≥10 USD $9.9132
≥100 USD $9.53216
≥500 USD $9.150768
≥1000 USD $8.642392
≥3000 USD $7.87981
Inventory: 150
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Crimp
Cable Group RG-11, 11A, 391, 392, Belden 1620, 1859, 7731, 8213, 9292
Body Finish Nickel
Includes 2 pcs - 1 Connector, 1 Contact
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 75Ohm
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 21.360005g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
