112565
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

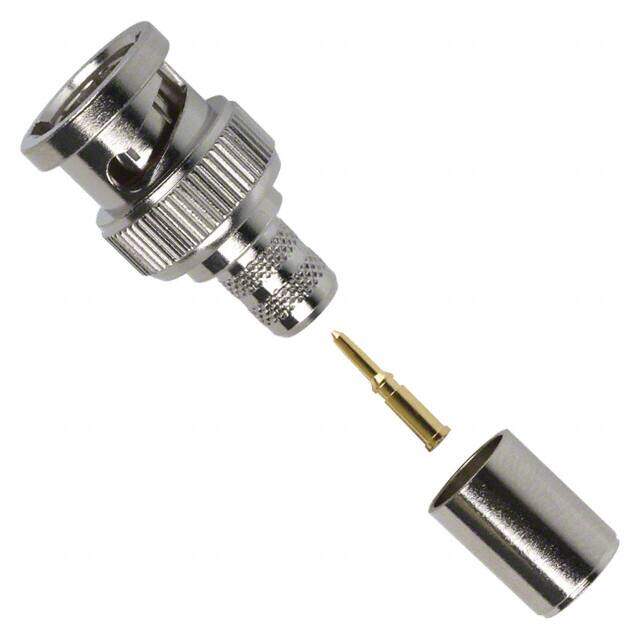

BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7256
≥1 USD $4.7256
≥10 USD $4.29176
≥100 USD $4.064544
≥500 USD $3.970032
≥1000 USD $3.78092
≥3000 USD $3.308334
Inventory: 417
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 12.600002g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group RG-6 Double Braid, Belden 1694A
Shield Termination Crimp
Dimensions
Length 25mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
