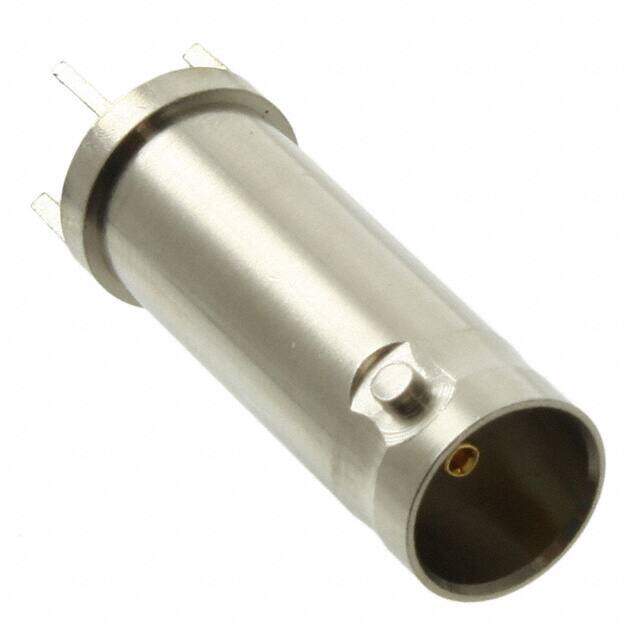

112554

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description BNC Connector Jack, Female Socket 75 Ohm Through Hole Solder
PDF
/
Buying Options
Total Price: USD $5.61
Unit Price: USD $5.6056
≥1 USD $5.6056
≥10 USD $5.07232
≥100 USD $4.791424
≥500 USD $4.67456
≥1000 USD $4.440832
≥3000 USD $3.973376
Inventory: 459
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Solder
Body Finish Nickel
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk

Physical

Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 9.599999g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 9 Weeks
