112551
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

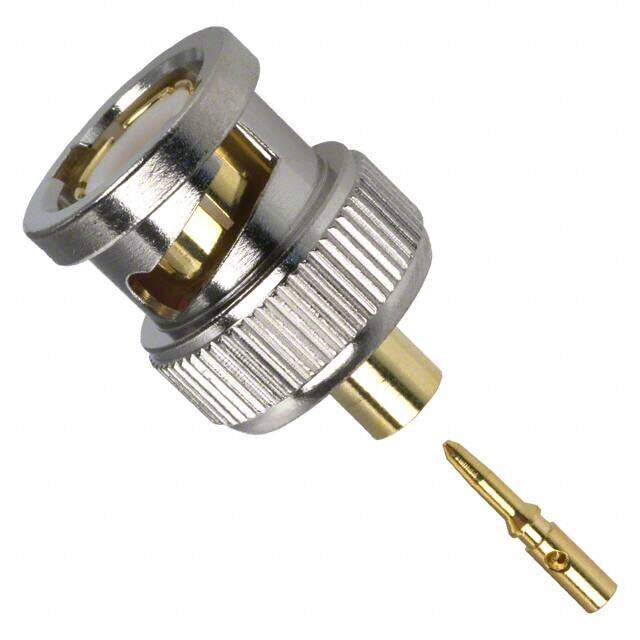

CONN BNC PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.488
≥1 USD $4.488
≥10 USD $4.0744
≥100 USD $3.858976
≥500 USD $3.769392
≥1000 USD $3.589872
≥3000 USD $3.14116
Inventory: 268
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 21.5mm
Technical
Shield Termination Solder
Cable Group RG-402 (.141 Semi Rigid)
Body Finish Nickel; Gold
Insertion Loss 0.2dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Gold, Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 8.460008g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
