112540

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

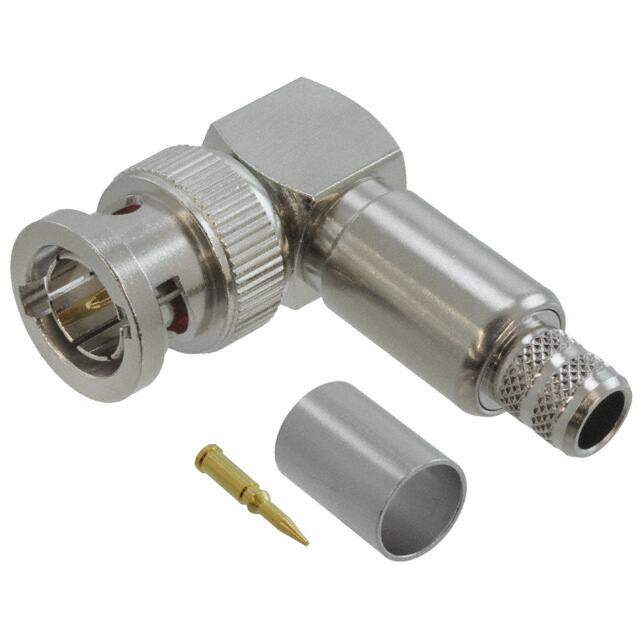

Description BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line), Right Angle Crimp
PDF
/
Buying Options
Total Price: USD $8.27
Unit Price: USD $8.272
≥1 USD $8.272
≥10 USD $7.4448
≥100 USD $7.013248
≥500 USD $6.833376
≥1000 USD $6.653592
≥3000 USD $5.93428
Inventory: 85
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Crimp
Cable Group RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Right Angle
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 75Ohm
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 28.349523g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass, Bronze

Supply Chain

Factory Lead Time 9 Weeks
