112509
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BNC CRIMP PLUG B8281-75 OHM
PDF
/
Buying Options
Total Price: USD $3.25
Unit Price: USD $3.252563
≥1 USD $3.252563
≥10 USD $3.068456
≥100 USD $2.894769
≥500 USD $2.730914
≥1000 USD $2.576331
Inventory: 4141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 10.300005g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

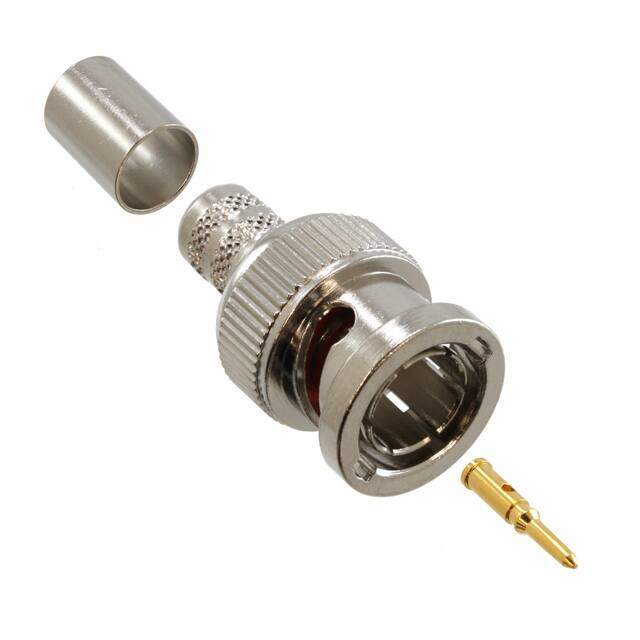

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Finish Nickel
Cable Group RG-59, Belden 1426A, 1505A, 8281, 9100, 9278
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
