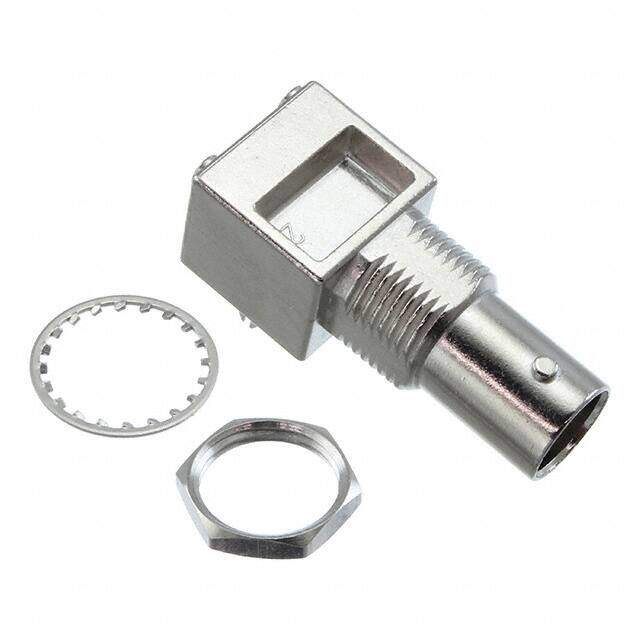

112487
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $5.9
Unit Price: USD $5.896
≥1 USD $5.896
≥10 USD $5.3328
≥100 USD $5.038176
≥500 USD $4.915328
≥1000 USD $4.669632
≥3000 USD $4.17809
Inventory: 436
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Package / Case Metal
Mounting Feature Bulkhead
Dielectric Material Polypropylene (PP)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2010
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
