112424
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
BNC Connector Receptacle, Female Socket 50 Ohm Panel Mount, Bulkhead - Rear Side Nut Solder Cup
PDF
/
Buying Options
Total Price: USD $2.82
Unit Price: USD $2.8248
≥1 USD $2.8248
≥10 USD $2.56256
≥100 USD $2.426688
≥500 USD $2.370192
≥1000 USD $2.257376
≥3000 USD $1.975186
Inventory: 1655
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 7.019994g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2001
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 12.7mm
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder Cup

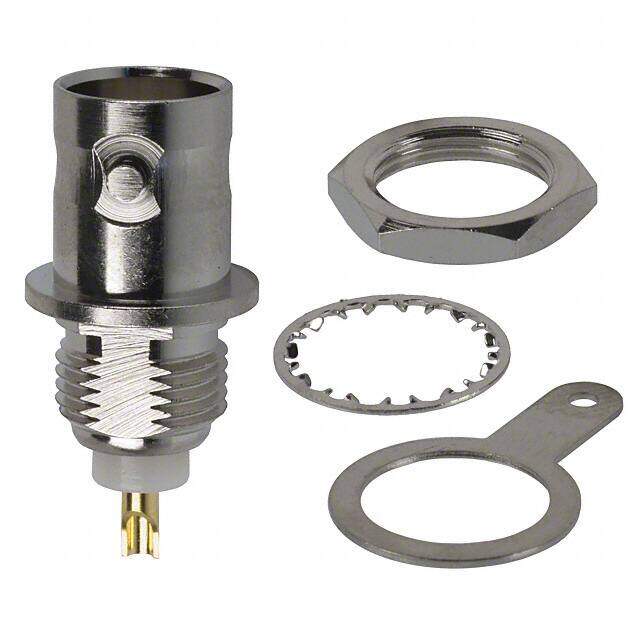

Includes 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Insertion Loss 0.2dB
Body Finish Nickel
Shield Termination Solder Tag
Dimensions
Height 12.7mm
Length 26.7mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
