112421
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

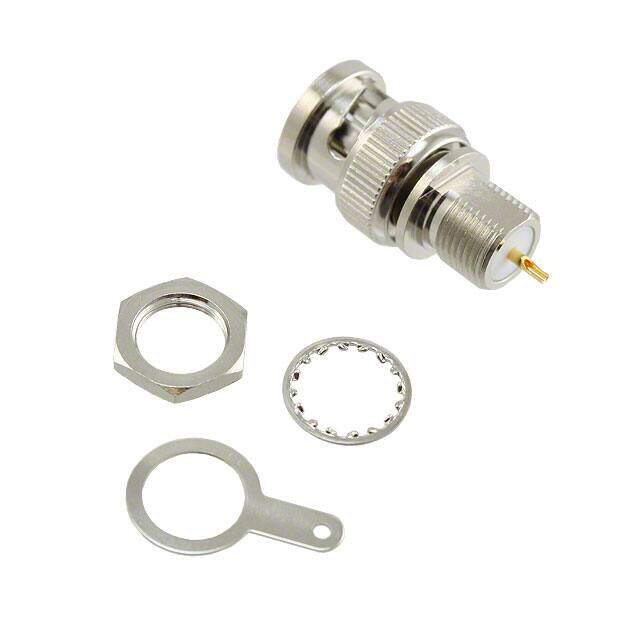

BNC Connector Receptacle, Male Pin 75 Ohm Panel Mount, Bulkhead - Rear Side Nut Solder Cup
PDF
/
Buying Options
Total Price: USD $5.61
Unit Price: USD $5.6144
≥1 USD $5.6144
≥10 USD $5.07936
≥100 USD $4.798464
≥500 USD $4.681248
≥1000 USD $4.447168
≥3000 USD $3.97907
Inventory: 373
Minimum: 1
-
+
Technical Details
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Dimensions
Length 30.2mm
Technical
Shield Termination Solder Tag
Body Finish Nickel
Includes 4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag
Contact Termination Solder Cup
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 15.999989g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front, Panel, Rear Side Nut
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
