112419
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

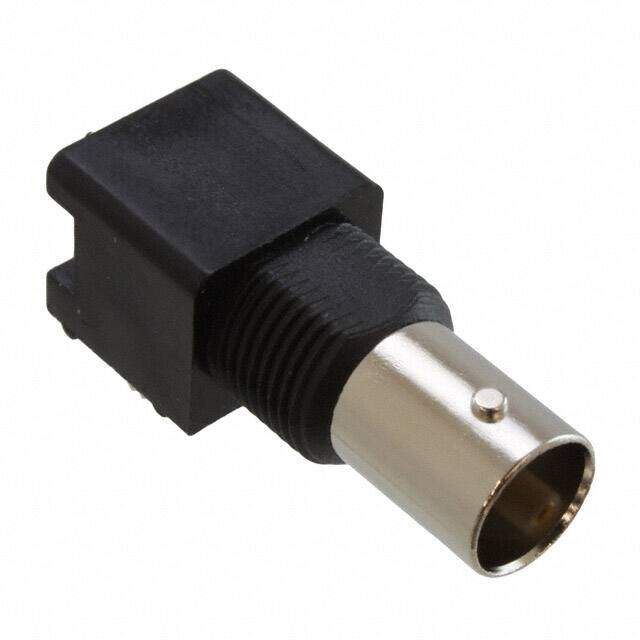

BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Bulkhead; Through Hole, Right Angle Solder
PDF
/
Buying Options
Total Price: USD $3.5
Unit Price: USD $3.5024
≥1 USD $3.5024
≥10 USD $3.18208
≥100 USD $3.013472
≥500 USD $2.943424
≥1000 USD $2.803328
≥3000 USD $2.452877
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead
Insulation Material Polypropylene
Dielectric Material Polypropylene (PP)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2010
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Depth 34.7mm
Frequency 1Hz
Housing Color Silver, White
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder
Body Finish Nickel
Shield Termination Solder
Dimensions
Length 14.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
