112291
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

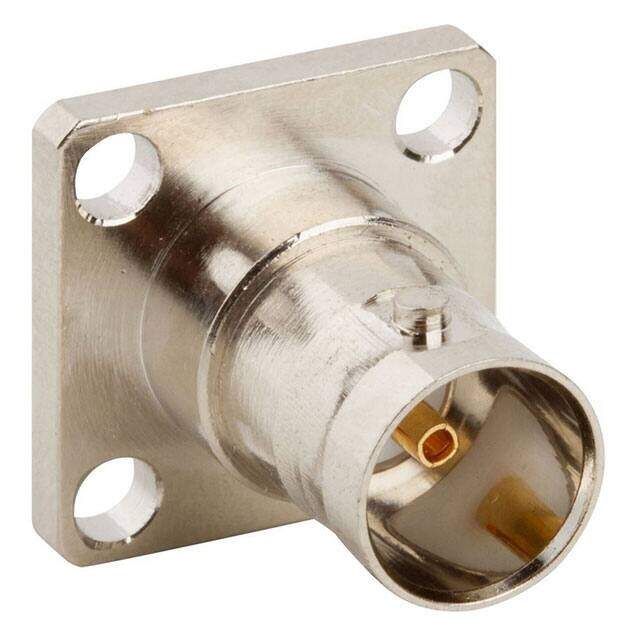

RF Connectors / Coaxial Connectors BNC PANEL RECPT JACK 75 OHM-TF
PDF
/
Buying Options
Total Price: USD $6.02
Unit Price: USD $6.0192
≥1 USD $6.0192
≥10 USD $5.44104
≥100 USD $5.140256
≥500 USD $5.014768
≥1000 USD $4.764056
≥3000 USD $4.262544
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 11.632008g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2006
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Resistance 75Ohm
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Female
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder Cup
Body Finish Nickel
Shield Termination Solder
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
