112288
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

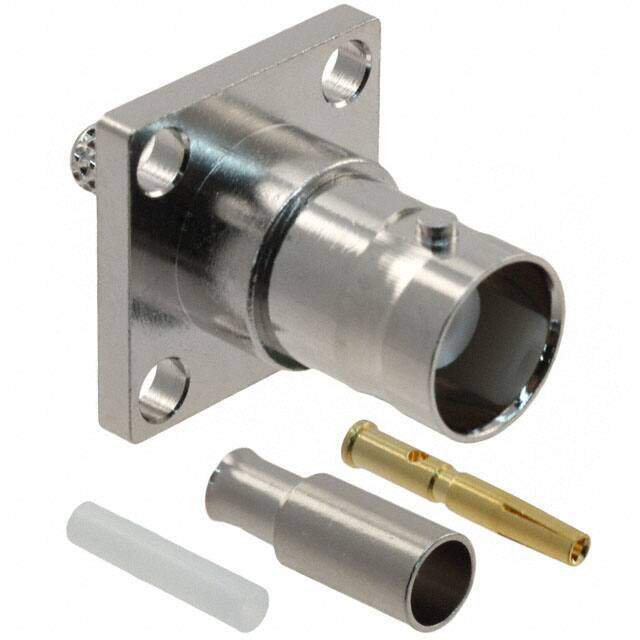

BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Square Flange Crimp
PDF
/
Buying Options
Total Price: USD $6.53
Unit Price: USD $6.5296
≥1 USD $6.5296
≥10 USD $5.90304
≥100 USD $5.577088
≥500 USD $5.440864
≥1000 USD $5.168944
≥3000 USD $4.624814
Inventory: 794
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Package / Case 100
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 12.539986g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 17.5mm
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 27.6mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
