112288-11
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

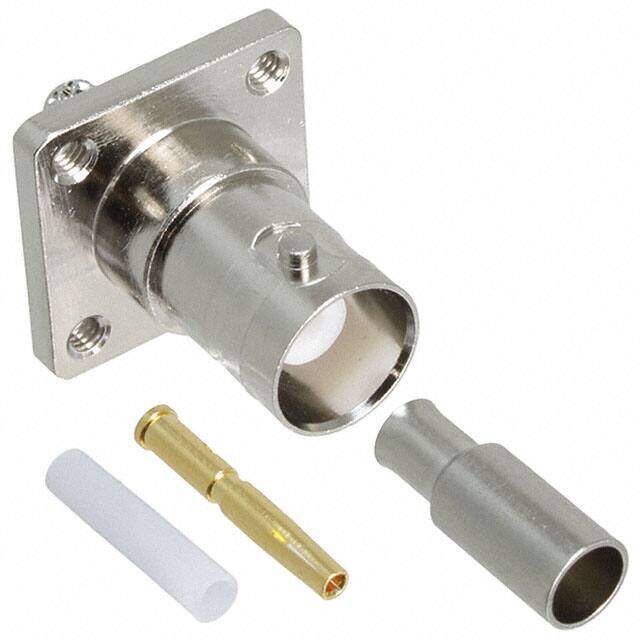

RF Connectors / Coaxial Connectors BNC PANEL CRIMP JK 174 3-56 TAP HOLES
PDF
/
Buying Options
Total Price: USD $7.16
Unit Price: USD $7.1632
≥1 USD $7.1632
≥10 USD $6.4504
≥100 USD $6.076224
≥500 USD $5.920464
≥1000 USD $5.764616
≥3000 USD $5.141374
Inventory: 143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Package / Case 100
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 14.399999g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2002
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 17.5mm
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 27.6mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
