112253
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 75 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $6.93
Unit Price: USD $6.9256
≥1 USD $6.9256
≥10 USD $6.26472
≥100 USD $5.918176
≥500 USD $5.773856
≥1000 USD $5.485128
≥3000 USD $4.907786
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 13.300009g
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2005
Feature Isolated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Depth 16mm
Frequency 4GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

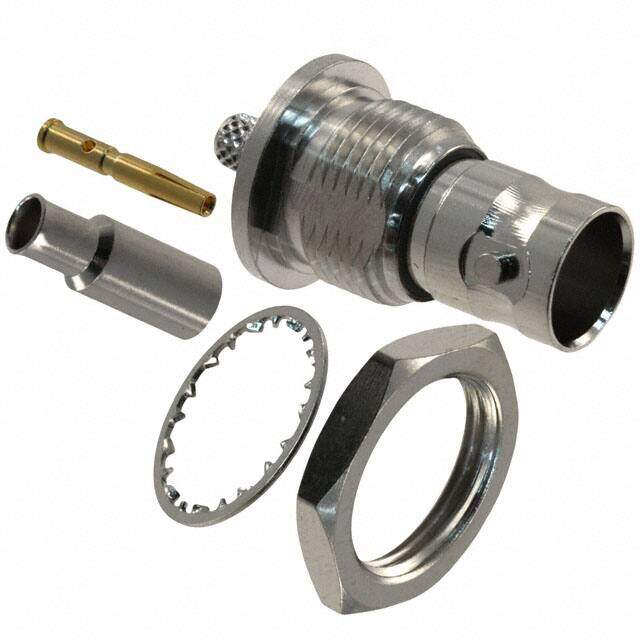

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve
Body Finish Nickel
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Shield Termination Crimp
Dimensions
Length 36.1mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
