112252
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

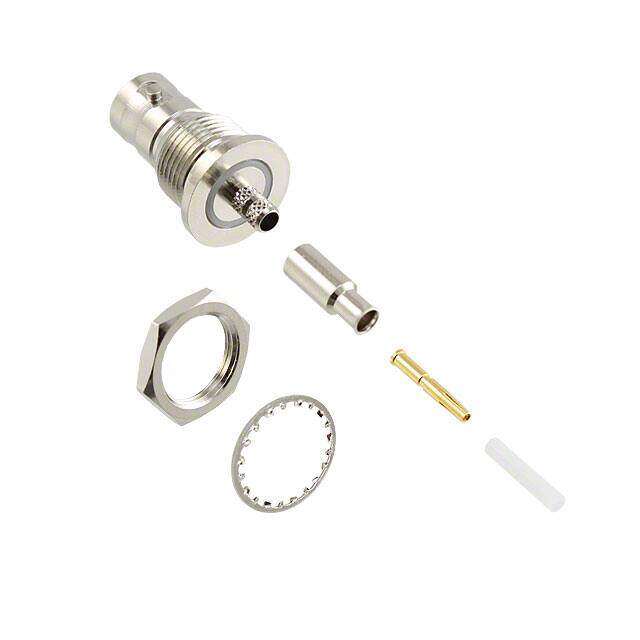

BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Crimp
PDF
/
Buying Options
Total Price: USD $7.61
Unit Price: USD $7.612
≥1 USD $7.612
≥10 USD $6.88248
≥100 USD $6.50144
≥500 USD $6.34304
≥1000 USD $6.025888
≥3000 USD $5.391584
Inventory: 195
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 28.5mm
Technical
Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Nickel
Insertion Loss 0.2dB
Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Isolated
Published 2001
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 13.999987g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 8 Weeks
