112236
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

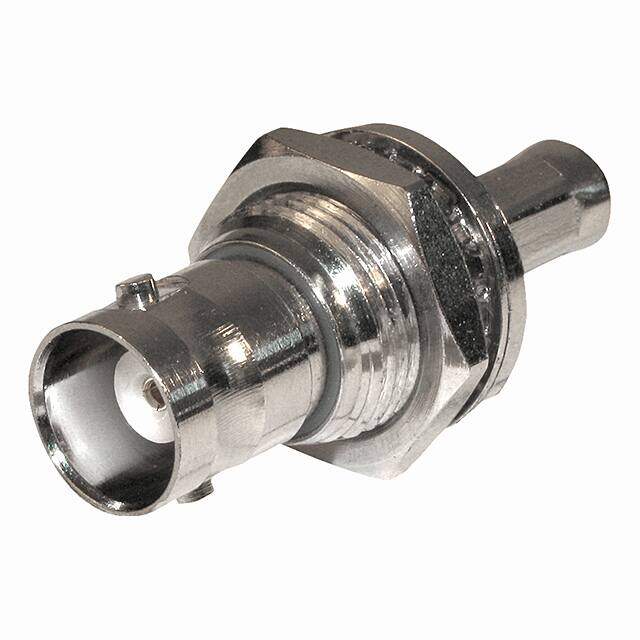

RF Connectors / Coaxial Connectors BNC BULKHEAD ISOL CRIMP JACK RG58
PDF
/
Buying Options
Total Price: USD $7.09
Unit Price: USD $7.0928
≥1 USD $7.0928
≥10 USD $6.41696
≥100 USD $6.061792
≥500 USD $5.913952
≥1000 USD $5.618272
≥3000 USD $5.02685
Inventory: 74
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 30mm
Technical
Shield Termination Crimp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Body Finish Nickel
Insertion Loss 0.2dB
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style BNC
Impedance 50Ohm
Housing Color Silver
Frequency 4GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Resistance 50Ohm
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 15.999989g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
