112205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
connector, rf coaxial, bnc bulkhead jack, isolated, crimp term, 75 ohm, for rg59, 62
PDF
/
Buying Options
Total Price: USD $10.45
Unit Price: USD $10.4456
≥1 USD $10.4456
≥10 USD $9.25496
≥100 USD $8.899264
≥500 USD $8.543216
≥1000 USD $8.068544
≥3000 USD $7.356598
Inventory: 157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Resistance 75Ohm
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

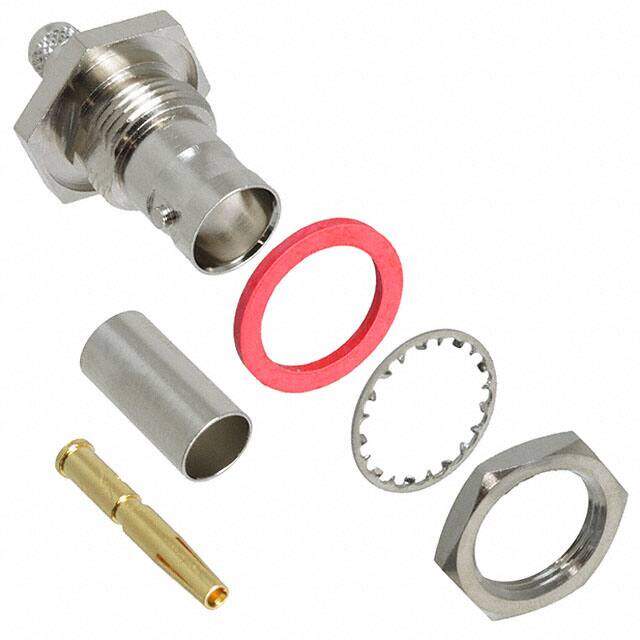

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
