112165
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors BNC R/A CRIMP PLUG RG59 75 OHM
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $5.72
≥100 USD $5.403552
≥500 USD $5.271904
≥1000 USD $5.008344
≥3000 USD $4.481136
Inventory: 589
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 19.579995g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Resistance 75Ohm
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Right Angle
Frequency 4GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

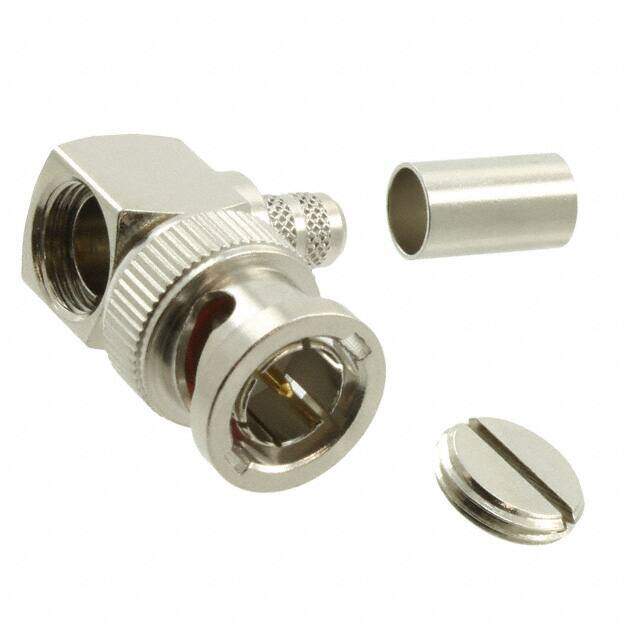

Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Shield Termination Crimp
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
