112161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

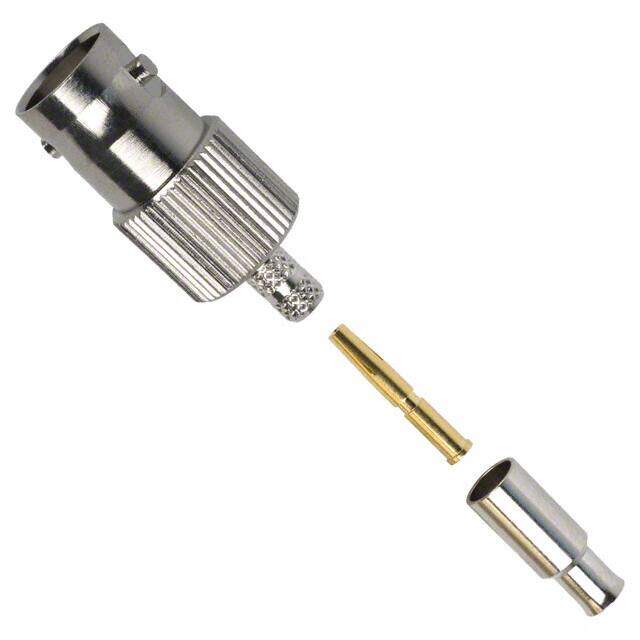

BNC Connector Jack, Female Socket 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.9864
≥1 USD $3.9864
≥10 USD $3.61856
≥100 USD $3.427072
≥500 USD $3.347344
≥1000 USD $3.187976
≥3000 USD $2.78945
Inventory: 345
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 34.9mm
Technical
Shield Termination Crimp
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Body Finish Nickel
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 9.099998g
Dielectric Material Polyoxymethylene (POM) Acetal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 8 Weeks
