112147
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

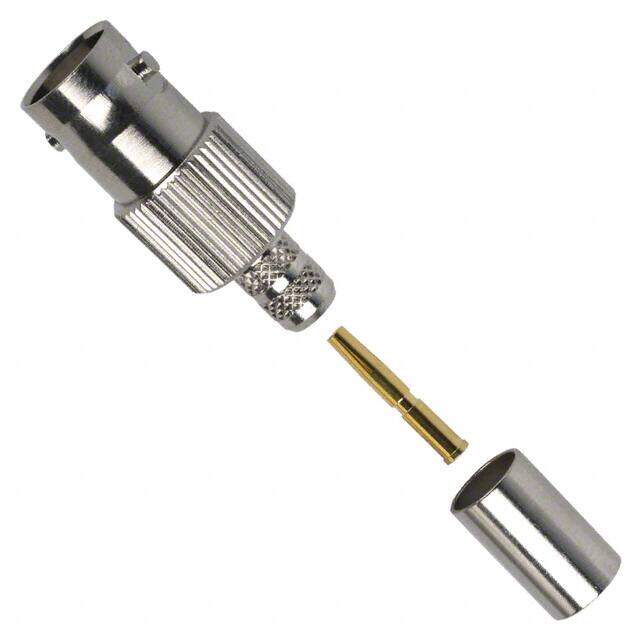

BNC Connector Jack, Female Socket 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $4.2
Unit Price: USD $4.1976
≥1 USD $4.1976
≥10 USD $3.81128
≥100 USD $3.610112
≥500 USD $3.525984
≥1000 USD $3.35808
≥3000 USD $2.93832
Inventory: 256
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 28.8mm
Technical
Shield Termination Crimp
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1GHz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Physical
Center Contact Material Phosphor Bronze
Center Contact Plating Gold
Body Material Brass
Weight 11.899996g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
