112135
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
PDF
/
Buying Options
Total Price: USD $4.44
Unit Price: USD $4.4352
≥1 USD $4.4352
≥10 USD $4.02424
≥100 USD $3.811456
≥500 USD $3.722752
≥1000 USD $3.54552
≥3000 USD $3.10229
Inventory: 119
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 8.099997g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 1GHz
Housing Color Silver
Impedance 75Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 2GHz
Mating Cycles 500
Contact Termination Crimp

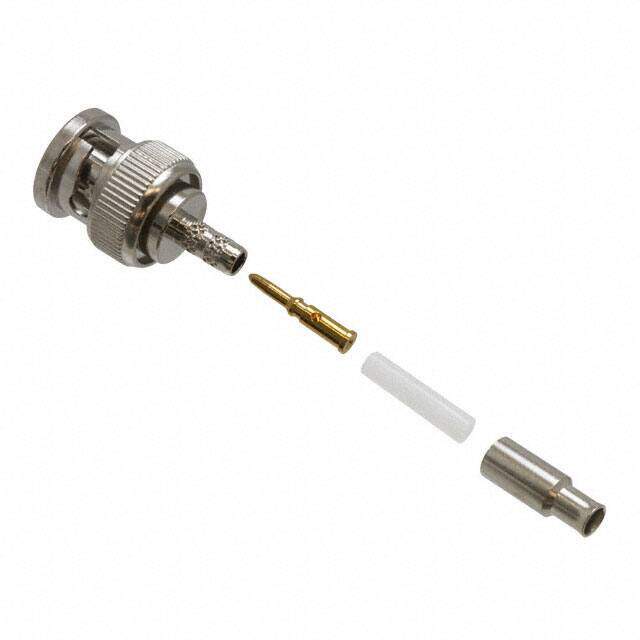

Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve
Body Finish Nickel
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Shield Termination Crimp
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
