112127
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

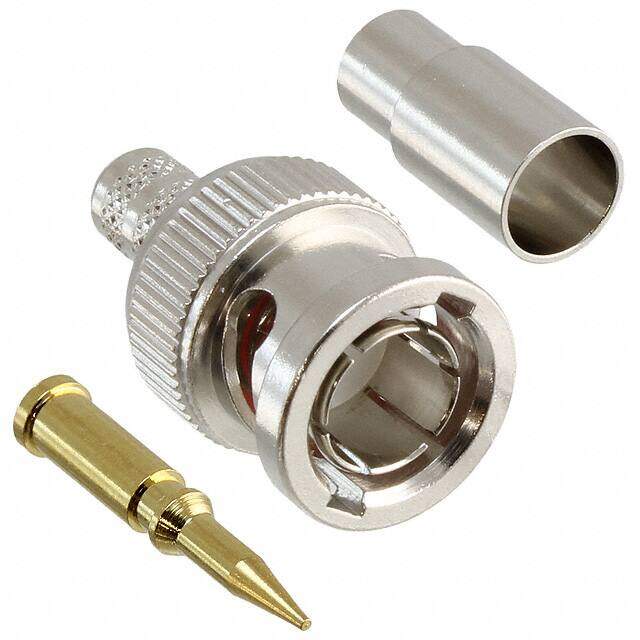

RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RF59T 75 OHM 3PC BR
PDF
/
Buying Options
Total Price: USD $4.68
Unit Price: USD $4.6816
≥1 USD $4.6816
≥10 USD $4.25392
≥100 USD $4.029344
≥500 USD $3.935536
≥1000 USD $3.748184
≥3000 USD $3.279672
Inventory: 140
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 25mm
Technical
Shield Termination Crimp
Cable Group RG-59 Plenum, Belden 1560A, 82259, 88241, 89259, 9259
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Crimp
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style BNC
Impedance 75Ohm
Housing Color Silver
Frequency 1Hz
Orientation Straight
Fastening Type Bayonet Lock
Voltage - Rated 500V
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Resistance 75Ohm
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polyoxymethylene (POM) Acetal
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
