112120
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

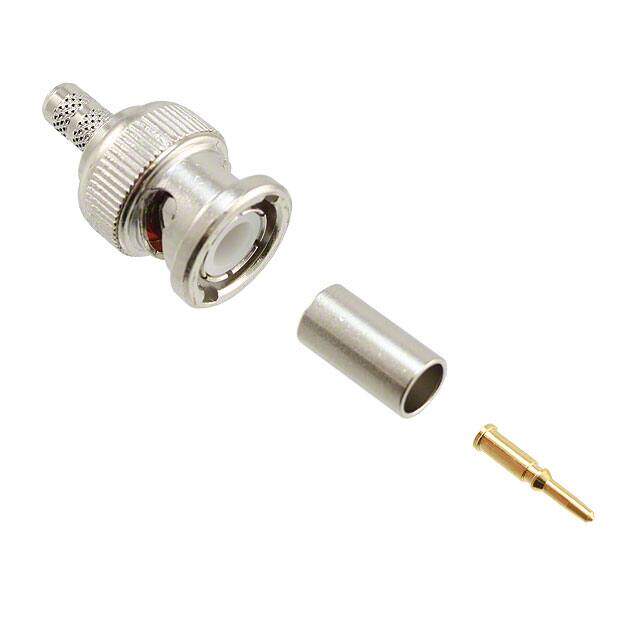

CONN BNC PLUG STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $3.87
Unit Price: USD $3.872
≥1 USD $3.872
≥10 USD $3.51472
≥100 USD $3.329216
≥500 USD $3.251776
≥1000 USD $3.096896
≥3000 USD $2.709784
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 8.760003g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2008
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
