112116
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
connector, rf coaxial, bnc str crimp plug, captive cont, for rg58, 141, LMR195, 50 ohm
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.2352
≥100 USD $2.116576
≥500 USD $2.067472
≥1000 USD $1.969
≥3000 USD $1.72289
Inventory: 4652
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polyoxymethylene (POM) Acetal
Weight 9.899994g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

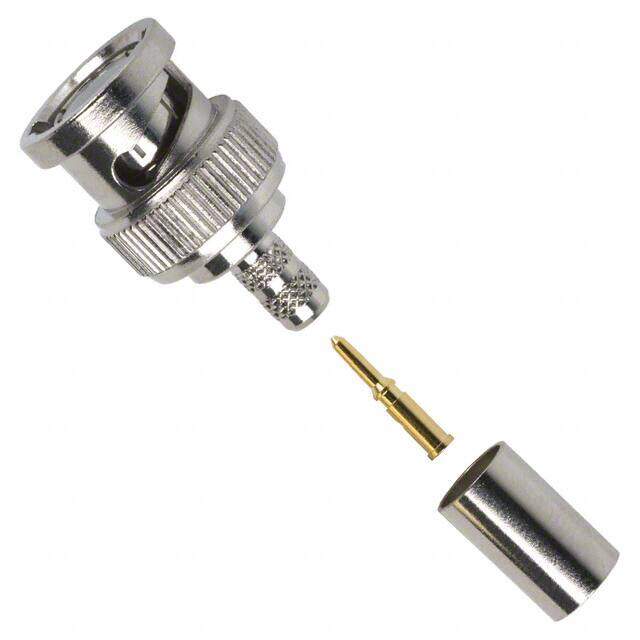

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Dimensions
Diameter 14.5mm
Length 24.5mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
