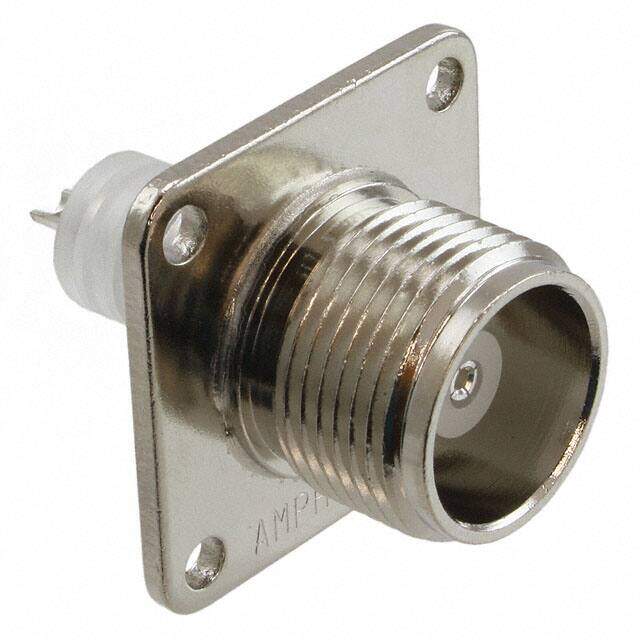

082-92
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn HN RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Silver
PDF
/
Buying Options
Total Price: USD $39.18
Unit Price: USD $39.1776
≥1 USD $39.1776
≥10 USD $34.30328
≥100 USD $32.821184
≥500 USD $31.762368
≥1000 USD $30.703552
≥3000 USD $29.009578
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 38.9mm
Technical
Shield Termination Solder
Body Finish Nickel
Contact Termination Solder Cup
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Nickel
Number of Ports 1
Connector Style HN Type
Impedance 50Ohm
Housing Color Silver
Military Standard UG-496
Frequency 4GHz
Depth 30.2mm
Ingress Protection Weatherproof
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Extended Insulation
Published 2001
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Silver
Body Material Brass
Dielectric Material Copolymer
Insulation Material Tetrafluoroethylene
Mounting Feature Flange
Mounting Type Panel Mount
Mount Bulkhead, Flanges, Panel
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
