082-856
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN HN PLUG R/A 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $122.58
Unit Price: USD $122.584
≥1 USD $122.584
≥10 USD $112.48952
≥100 USD $108.162912
≥500 USD $104.557552
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Free Hanging (In-Line), Right Angle
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Silver
Center Contact Material Beryllium Copper; Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Male Pin
Voltage - Rated 1500V
Fastening Type Threaded
Ingress Protection Weatherproof
Housing Color Silver
Impedance 50Ohm
Connector Style HN Type
Number of Ports 1
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

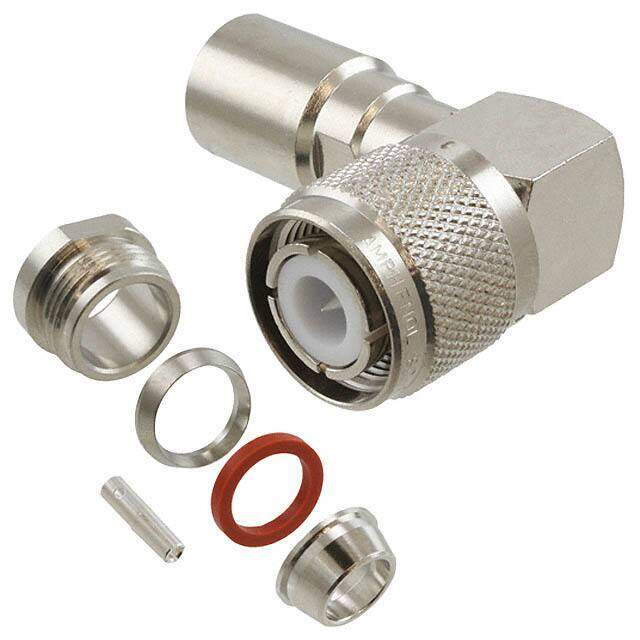

Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Cable Gland, 1 Clamp, 1 Contact, 1 Gasket
Body Finish Nickel
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Shield Termination Clamp
Compliance
RoHS Status RoHS Compliant
