082-843
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

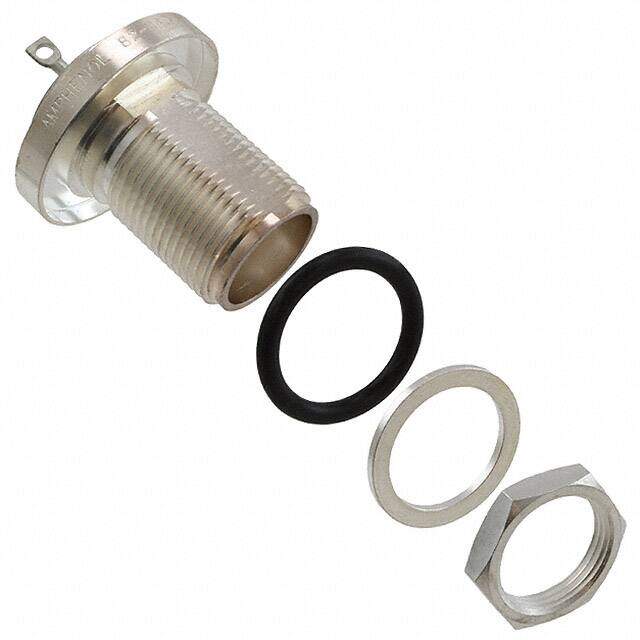

CONN HN RCPT STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $252.35
Unit Price: USD $252.3488
≥1 USD $252.3488
≥10 USD $233.84064
≥100 USD $225.428896
Inventory: 106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Silver
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Feature Hermetically Sealed
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 4GHz
Housing Color Silver
Impedance 50Ohm
Connector Style HN Type
Number of Ports 1
Body Plating Silver
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder Eyelet
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Finish Silver
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
