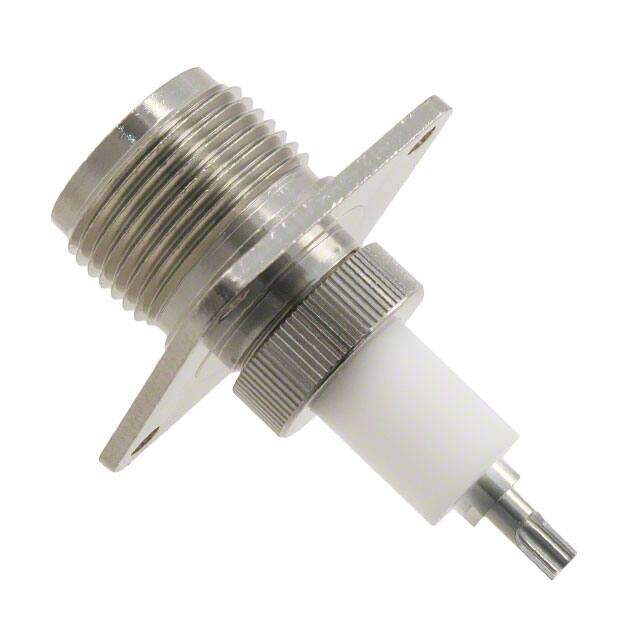

082-805
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN HN JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $73.34
Unit Price: USD $73.3392
≥1 USD $73.3392
≥10 USD $67.30152
≥100 USD $64.713088
≥500 USD $62.555856
≥1000 USD $59.104496
Inventory: 84
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Silver
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bag
Published 2001
Feature Extended Insulation
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Female
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 4GHz
Military Standard UG-560
Housing Color Silver
Impedance 50Ohm
Connector Style HN Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder Cup
Body Finish Nickel
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
