082-804
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

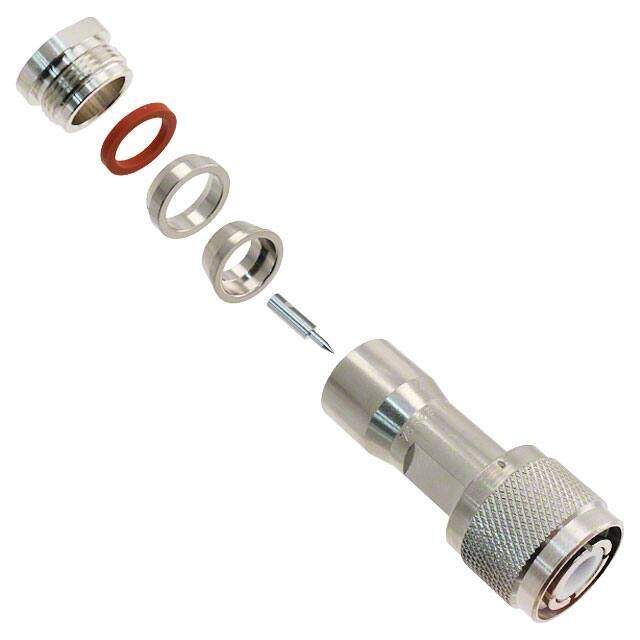

CONN HN PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $79.63
Unit Price: USD $79.6312
≥1 USD $79.6312
≥10 USD $73.07696
≥100 USD $70.266592
≥500 USD $67.924208
≥1000 USD $64.176728
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Clamp
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Body Finish Nickel
Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Cable Gland, 1 Clamp, 1 Contact, 1 Gasket
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Number of Ports 1
Connector Style HN Type
Impedance 50Ohm
Housing Color Silver
Ingress Protection Weatherproof
Fastening Type Threaded
Voltage - Rated 1500V
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Silver
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 9 Weeks
