082-6643
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN N JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $19.92
Unit Price: USD $19.9232
≥1 USD $19.9232
≥10 USD $18.9596
Inventory: 171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Crimp
Cable Group LMR-400
Body Finish White Bronze

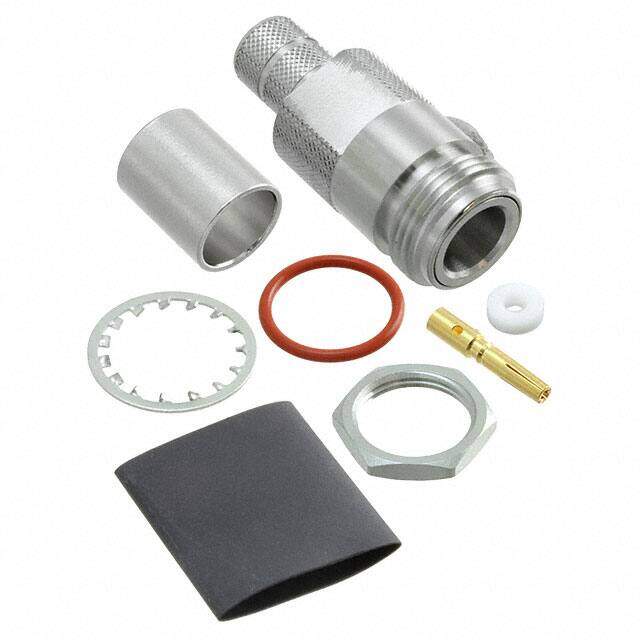

Includes 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Housing Color Silver
Fastening Type Threaded
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 25 Weeks
