082-6092-RFX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

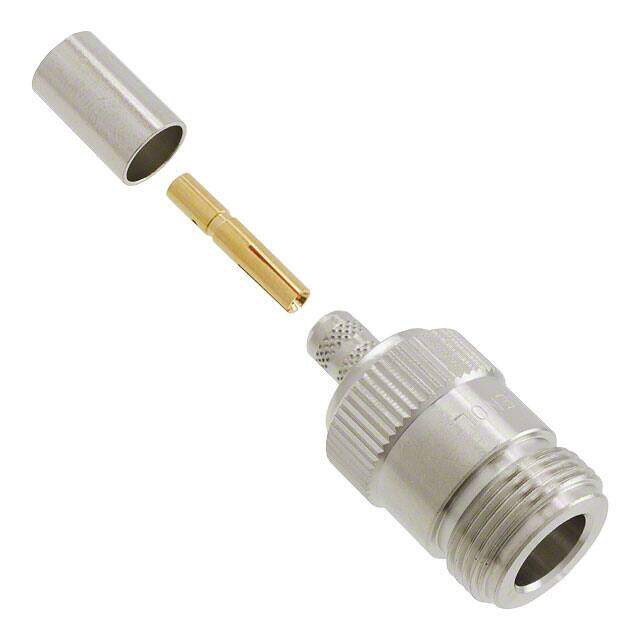

CONN N JACK STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $8.23
Unit Price: USD $8.230569
≥1 USD $8.230569
≥10 USD $7.764682
≥100 USD $7.325184
≥500 USD $6.910542
≥1000 USD $6.519386
Inventory: 1094
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material POLYTETRAFLUORO ETHYLENE
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Voltage - Rated 1500V
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 11GHz
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Mating Cycles 500
Contact Termination Crimp
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
VSWR 1.3
Dimensions
Length 31.9024mm
Compliance
RoHS Status RoHS Compliant
